NUTS ROASTER CAPACITY AND BRIEF TECHNICAL DETAILS:
NUTS ROASTER FR-20 (20-35 Kg/H)
MACHINE CASTLE NUTS MACHINE model FR-20 is one of the most popular roasting oven by retail and small-scale shops due to its ergonomic and small size. The most important feature of the nut roasting oven is that it provides low fuel consumption with its high capacity performance and provides the best nut roasting experience to its user thanks to its user-friendly interface. This model can roast not only seeds, but also different products such as peanuts, hazelnuts, almonds, cashews, pistachios, pumpkin seeds, roasted chickpeas, macadamia nuts, pecan nuts, etc. The fully stainless nut roasting oven offers a user-friendly operation thanks to its PLC touch screen. In addition, the user of this roasting oven can save up to 200 different product roasting recipes on the machine. It is our most demanded model in terms of being environmentally friendly, high-capacity product roasting performance and long-term fuel savings. All of our products have ISO 9001, TSE, CE, CSA qualification and competence certificates.
Roasting Performance Capacity:
| Sunflower Seeds | 20-25 Kg/H |
| Peanut | 20-25 Kg/H |
| Shelled Peanut | 15-25 Kg/H |
| Hazelnut | 20-35 Kg/H |
| Shelled Hazelnut | 15-25 Kg/H |
| Pumpkin Seeds | 20-25 Kg/H |
| Almond | 20-35 Kg/H |
| Shelled Almond | 15-25 Kg/H |
| Pistachio | 20-35 Kg/H |
| Cashew | 20-35 Kg/H |
| Chickpea | 20-25 Kg/H |
Brief Technical Info:
| Lenght | 1850 mm |
| Width | 900 mm |
| Height | 1400 mm |
| Weight | 360 Kg |
| Electricity (if heating) | Min Max 10-15 Kw |
| Gas | 2.5 Kw, 2.90 m³/h Gas |
(For lpg or diesel please Contact Us)
NUTS ROASTER FR-30 (30-45 Kg/H)
MACINE CASTLE NUTS ROASTING OVEN model FR-30 is one of the most popular roasting oven by retail and small-scale shops due to its ergonomic and small size. The most important feature of the nut roasting oven is that it provides low fuel consumption with its high capacity performance and provides the best nut roasting experience to its user thanks to its user-friendly interface. This model can roast not only seeds, but also different products such as peanuts, hazelnuts, almonds, cashews, pistachios, pumpkin seeds, roasted chickpeas, macadamia nuts, pecan nuts, etc. The fully stainless nut roasting oven offers a user-friendly operation thanks to its PLC touch screen. In addition, the user of this roasting oven can save up to 200 different product roasting recipes on the machine. It is our most demanded model in terms of being environmentally friendly, high-capacity product roasting performance and long-term fuel savings. All of our products have ISO 9001, TSE, CE, CSA qualification and competence certificates.
Roasting Performance Capacity:
| Sunflower Seeds | 30-45 Kg/H |
| Peanut | 30-45 Kg/H |
| Shelled Peanut | 30-45 Kg/H |
| Hazelnut | 30-50 Kg/H |
| Shelled Hazelnut | 30-45 Kg/H |
| Pumpkin Seeds | 30-45 Kg/H |
| Almond | 30-50 Kg/H |
| Shelled Almond | 20-30 Kg/H |
| Pistachio | 30-50 Kg/H |
| Cashew | 30-50 Kg/H |
| Chickpea | 30-45 Kg/H |
Brief Technical Info:
| Lenght | 1850 mm |
| Width | 1100 mm |
| Height | 1400 mm |
| Weight | 400 Kg |
| Electricity (if heating) | Min Max 12.5-17.5 Kw |
| Gas | 2.5 Kw, 3.60 m³/h Gas |
(For lpg or diesel please Contact Us)
NUTS ROASTER FR-50 (50-90 Kg/H)
MACHINE CASTLE NUTS ROASTER model FR-50 is one of the most popular roasting oven by retail and small-scale shops due to its ergonomic and small size. The most important feature of the nut roasting oven is that it provides low fuel consumption with its high capacity performance and provides the best nut roasting experience to its user thanks to its user-friendly interface. This model can roast not only seeds, but also different products such as peanuts, hazelnuts, almonds, cashews, pistachios, pumpkin seeds, roasted chickpeas, macadamia nuts, pecan nuts, etc. The fully stainless nut roasting oven offers a user-friendly operation thanks to its PLC touch screen. In addition, the user of this roasting oven can save up to 200 different product roasting recipes on the machine. It is our most demanded model in terms of being environmentally friendly, high-capacity product roasting performance and long-term fuel savings. All of our products have ISO 9001, TSE, CE, CSA qualification and competence certificates. Apart from the small nuts roasters this machine has the cooling unit.
Roasting Performance Capacity:
| Sunflower Seeds | 50-60 Kg/H |
| Peanut | 50-60 Kg/H |
| Shelled Peanut | 40-50 Kg/H |
| Hazelnut | 60-95 Kg/H |
| Shelled Hazelnut | 40-50 Kg/H |
| Pumpkin Seeds | 45-60 Kg/H |
| Almond | 60-95 Kg/H |
| Shelled Almond | 40-50 Kg/H |
| Pistachio | 60-90 Kg/H |
| Cashew | 60-95 Kg/H |
| Chickpea | 60-70 Kg/H |
Brief Technical Info:
| Lenght | 2300 mm |
| Width | 1300 mm |
| Height | 1760 mm |
| Weight | 790 Kg |
| Electricity (if heating) | Min Max 13-30 Kw |
| Gas | 7.5 Kw, 7.25 m³/h Gas |
(For lpg or diesel please Contact Us)
NUTS ROASTER FR-195 (90-140 Kg/H)
MACHINE CASTLE NUT MACHINES model FR-195 is one of our roasting ovens that comes from the top of the demand before going to the next step from the medium-sized business. It is the most preferred roasting oven, especially for those who want to take their nut roasting production line to the next level. This model has 1 dehumidification room, 2 roasting ovens and 1 cooling room. Nuts transported by Z-Elevator in manual or fully automatic lines pass to the salting stage, and at this stage, the product comes out of the salting machine after being marinated or salted for a certain period of time. It is then transferred to the roasting oven by means of a Z-Elevator or PVC elevator. After the roasting phase of the product is completed in the roasting oven, the roasted nuts pass through a vibrating sieve to remove excess dust and salt on them. And the products are ready for the packaging stage. Fuel options include Gas, LPG, Diesel, Electricity and Solid fuel (The shells of the product are used as fuel and the seeds are roasted, eg almonds, hazelnuts). All of our products have ISO 9001, TSE, CE, CSA qualification and competence certificates.
Roasting Performance Capacity:
| Sunflower Seeds | 90-110 Kg/H |
| Peanut | 90-110 Kg/H |
| Shelled Peanut | 80-100 Kg/H |
| Hazelnut | 100-140 Kg/H |
| Shelled Hazelnut | 80-100 Kg/H |
| Pumpkin Seeds | 80-110 Kg/H |
| Almond | 100-140 Kg/H |
| Shelled Almond | 80-100 Kg/H |
| Pistachio | 100-130 Kg/H |
| Cashew | 100-140 Kg/H |
| Chickpea | 100-140 Kg/H |
Brief Technical Info:
| Lenght | 3550 mm |
| Width | 1750 mm |
| Height | 1990 mm |
| Weight | 1220 Kg |
| Electricity (if heating) | Min Max 15-55 Kw |
| Gas | 7.5 Kw, 7.25 m³/h Gas |
(For lpg or diesel please Contact Us)
NUTS ROASTER FR-197 (130-195 Kg/H)
This model is one of MACHINE CASTLE NUTS ROASTING OVEN that comes from the top of the demand before going to the next step from the medium-sized business. It is the most preferred roasting oven, especially for those who want to take their nut roasting production line to the next level. This model has 1 dehumidification room, 2 roasting ovens and 1 cooling room. Nuts transported by Z-Elevator in manual or fully automatic lines pass to the salting stage, and at this stage, the product comes out of the salting machine after being marinated or salted for a certain period of time. It is then transferred to the roasting oven by means of a Z-Elevator or PVC elevator. After the roasting phase of the product is completed in the roasting oven, the roasted nuts pass through a vibrating sieve to remove excess dust and salt on them. And the products are ready for the packaging stage. Fuel options include Gas, LPG, Diesel, Electricity and Solid fuel (The shells of the product are used as fuel and the seeds are roasted, eg almonds, hazelnuts). All of our products have ISO 9001, TSE, CE, CSA qualification and competence certificates.
Number of Burner: 1 Piece
Roasting Performance Capacity:
| Sunflower Seeds | 110-150 Kg/H |
| Peanut | 110-150 Kg/H |
| Shelled Peanut | 90-125 Kg/H |
| Hazelnut | 150-200 Kg/H |
| Shelled Hazelnut | 100-150 Kg/H |
| Pumpkin Seeds | 100-150 Kg/H |
| Almond | 150-200 Kg/H |
| Shelled Almond | 100-150 Kg/H |
| Pistachio | 110-140 Kg/H |
| Cashew | 150-200 Kg/H |
| Chickpea | 150-200 Kg/H |
Brief Technical Info:
| Lenght | 4000 mm |
| Width | 2360 mm |
| Height | 2400 mm |
| Weight | 1350 Kg |
| Electricity (if heating) | Average 65 Kw |
| Gas | 7.5 Kw, 10.90 m³/h Gas |
(For lpg or diesel please Contact Us)
NUTS ROASTER FR-198 (200-275 Kg/H)
This model is one of our roasting ovens that comes from the top of the demand before going to the next step from the medium-sized business. It is the most preferred roasting oven, especially for those who want to take their nut roasting production line to the next level. This model has 1 dehumidification room, 2 roasting ovens and 1 cooling room. Nuts transported by Z-Elevator in manual or fully automatic lines pass to the salting stage, and at this stage, the product comes out of the salting machine after being marinated or salted for a certain period of time. It is then transferred to the roasting oven by means of a Z-Elevator or PVC elevator. After the roasting phase of the product is completed in the roasting oven, the roasted nuts pass through a vibrating sieve to remove excess dust and salt on them. And the products are ready for the packaging stage. Fuel options include Gas, LPG, Diesel, Electricity and Solid fuel (The shells of the product are used as fuel and the seeds are roasted, eg almonds, hazelnuts). All of our products have ISO 9001, TSE, CE, CSA qualification and competence certificates.
Number of Burner: 2 Pieces
Roasting Performance Capacity:
| Sunflower Seeds | 200-250 Kg/H |
| Peanut | 200-250 Kg/H |
| Shelled Peanut | 175-225 Kg/H |
| Hazelnut | 200-275 Kg/H |
| Shelled Hazelnut | 175-225 Kg/H |
| Pumpkin Seeds | 190-250 Kg/H |
| Almond | 225-275 Kg/H |
| Shelled Almond | 200-250 Kg/H |
| Pistachio | 225-275 Kg/H |
| Cashew | 200-275 Kg/H |
| Chickpea | 200-275 Kg/H |
Brief Technical Info:
| Lenght | 4120 mm |
| Width | 2460 mm |
| Height | 2451 mm |
| Weight | 1570 Kg |
| Electricity (if heating) | Average 65 Kw |
| Gas | 7.5 Kw, 10.90 m³/h Gas |
(For lpg or diesel please Contact Us)

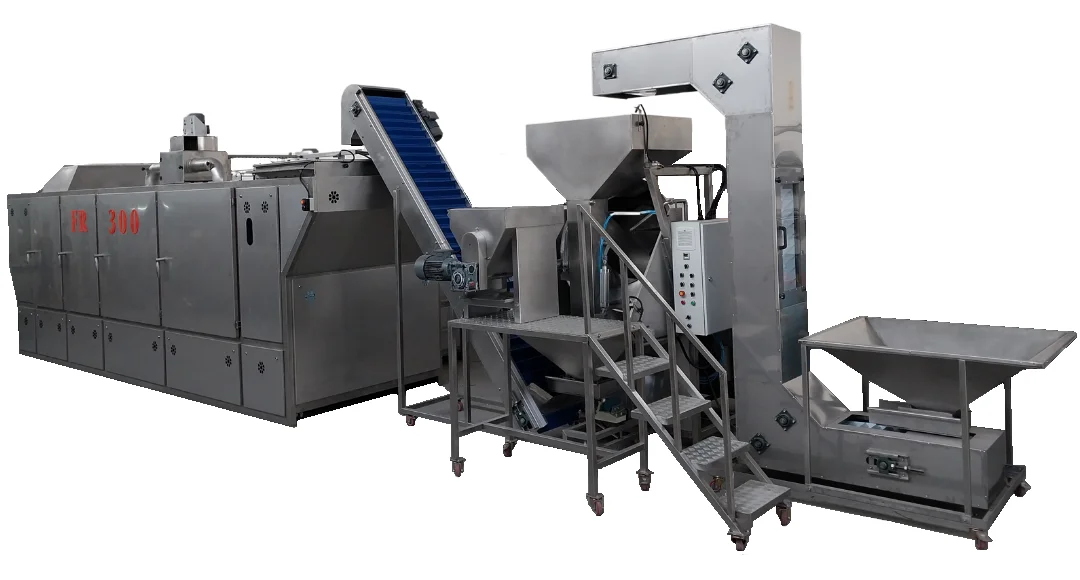

NUTS ROASTER FR-300 (300-420 Kg/H)
This model is one of our roasting ovens that comes from the top of the demand before going to the next step from the medium-sized business. It is the most preferred roasting oven, especially for those who want to take their nut roasting production line to the next level. This model has 1 dehumidification room, 2 roasting ovens and 1 cooling room. Nuts transported by Z-Elevator in manual or fully automatic lines pass to the salting stage, and at this stage, the product comes out of the salting machine after being marinated or salted for a certain period of time. It is then transferred to the roasting oven by means of a Z-Elevator or PVC elevator. After the roasting phase of the product is completed in the roasting oven, the roasted nuts pass through a vibrating sieve to remove excess dust and salt on them. And the products are ready for the packaging stage. Fuel options include Gas, LPG, Diesel, Electricity and Solid fuel (The shells of the product are used as fuel and the seeds are roasted, eg almonds, hazelnuts). All of our products have ISO 9001, TSE, CE, CSA qualification and competence certificates.
Number of Burners: 2 Pieces
Roasting Performance Capacity:
| Sunflower Seeds | 300-420 Kg/H |
| Peanut | 300-420 Kg/H |
| Shelled Peanut | 300-350 Kg/H |
| Hazelnut | 550-600 Kg/H |
| Shelled Hazelnut | 450-550 Kg/H |
| Pumpkin Seeds | 300-420 Kg/H |
| Almond | 300-420 Kg/H |
| Shelled Almond | 250-300 Kg/H |
| Pistachio | 300-420 Kg/H |
| Cashew | 300-420 Kg/H |
| Chickpea | 300-420 Kg/H |
Brief Technical Info:
| Lenght | 5420 mm |
| Width | 2780 mm |
| Height | 2770 mm |
| Weight | 3250 Kg |
| Electricity (if heating) | Average 110 Kw |
| Gas | 9 Kw, 22,78 m³/h Gas |
(For gas, lpg or diesel please Contact Us)
NUTS ROASTER FR-500 (500-700 Kg/H)
This machine, which can produce Min 500-700 kg of nuts per hour, increases the production capacity with less manpower thanks to its developed automation and control systems. Thanks to the recipe feature that can be saved in its memory, it contains nuts, pistachios, almonds, cashews, pistachios, seeds, etc., which are desired to be roasted. It can bring many products such as with a click. This model has 2 dehumidification chambers, 2 roasting ovens and 1 cooling chamber. Nuts transported by Z-Elevator in manual or fully automatic lines pass to the salting stage, and at this stage, the product comes out of the salting machine after being marinated or salted for a certain period of time. It is in the machine group where the general demand is experienced in terms of providing general fuel savings and performing high-performance roasting in a short time. Fuel options include Gas, LPG, Diesel, Electricity and Solid fuel (The shells of the product are used as fuel and the seeds are roasted, eg almonds, hazelnuts). All of our products have ISO 9001, TSE, CE, CSA qualification and competence certificates.
Number of Burners: 2 Pieces
Roasting Performance Capacity:
| Sunflower Seeds | 500-600Kg/H |
| Peanut | 500-600Kg/H |
| Shelled Peanut | 500-550 Kg/H |
| Hazelnut | 550-750 Kg/H |
| Shelled Hazelnut | 500 -550 Kg/H |
| Pumpkin Seeds | 500-700 Kg/H |
| Almond | 500-700 Kg/H |
| Shelled Almond | 500-550 Kg/H |
| Pistachio | 500-700 Kg/H |
| Cashew | 500-700 Kg/H |
| Chickpea | 500-700 Kg/H |
Brief Technical Info:
| Lenght | 7400 mm |
| Width | 2870 mm |
| Height | 2980 mm |
| Weight | 5800 Kg |
| Electricity (if heating) | Average 173 Kw |
| Gas | 11 Kw, 29,25 m³/h Gas |
(For lpg or diesel please Contact Us)
NUTS ROASTER FR-1000 (1000-1600 Kg/H)
This machine, which has become the favorite of large enterprises with its ability to meet the need for high capacity production, can be used as a full automatic, semi-automatic or only roasting oven. This machine, which has 4 roasting rooms, 2 resting / dehumidification rooms and 1 cooling room and has a capacity of at least 1,000 per hour, can reach up to 1,750 kilograms per hour depending on the product to be roasted. The roasting temperature in the band roasting oven, the band and the roasting chambers can be adjusted as in our other banded machines, so that the user has homogeneously evenly roasted nuts. Apart from our retail type roasting machines, there are brushes and washing bands in this machine, as in our other high-capacity belt roasters. Fuel options include Gas, LPG, Diesel, Electricity and Solid fuel (The shells of the product are used as fuel and the seeds are roasted, eg almonds, hazelnuts). All of our products have ISO 9001, TSE, CE, CSA qualification and competence certificates.
Number of Burners: 4 Pieces
| Lenght | 11300 mm |
| Width | 3080 mm |
| Height | 2970 mm |
| Weight | 5800 Kg |
| Electricity (if heating) | Average 249 Kw |
| Gas | 55,25 m³/h Gas |
(For lpg or diesel please Contact Us)
